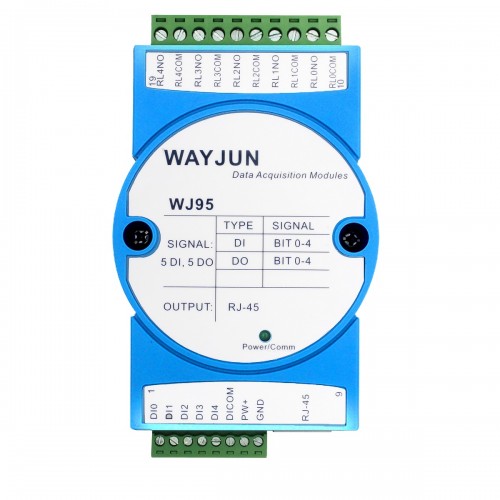

Part No.: WJ95-RJ45
Features:
>> Five channels switch input, five channels relay output
>> Supports MODBUS TCP communication protocol
>> Built-in Webpage function, you can query level state via the webpage
>> The relay output state can be set via the webpage
>> DI signal input, DO output and power supply are isolated each other
>> Wide power supply range: 8 ~ 32VDC
>> High reliability, easy programming, easy application
>> Standard DIN35 rail mounting, small size
>> Users can set the module IP address and other parameters on the page
>> Webpage login can be set account and password
>> Dimensions: 120 x 70 x 43mm
Product Overview:
  WAYJUN WJ95-RJ45 is a Internet of Things and Industrial Ethernet acquisition module, to achieve the formation transparent between sensor and network. WJ95-RJ45 can send sensor data exchange to network, or send the data forwards network to the sensor.
Function Description:

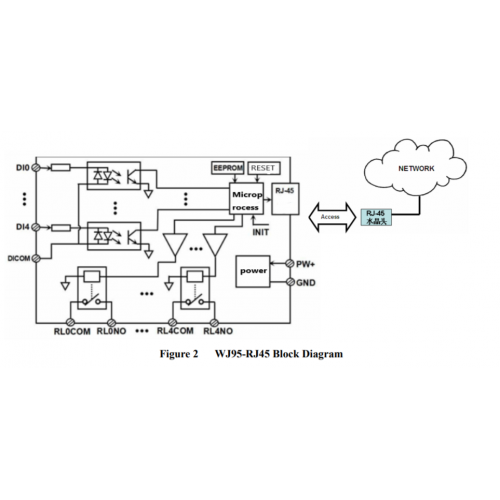

WJ95-RJ45 remote I/O module can be used to measure 5 channels switch signal input, and 5 channels digital output signal, and 5 channels relay output.
 1. Switch signal input and output
  5-CH switch signal input, which can be connected to dry contact and wet contact, details refer to the wiring diagram.
5-CH switch signal output open collector output
 2. Communication protocol
  Communication Interface: RJ-45 network interface. The two lights of Ethernet port position, when after the network cable plugged the Link (Green) will be light all the time, Data (Yellow) will flash from time to time.
  Communication Protocols: supports MODBUS TCP protocols, can achieve industrial Ethernet data exchange. Also users can access the control module directly via the web.
  Network Cache: 2K Byte (both receive and send)
 Response Time: <100ms
 3. Anti-jamming
  Module internal has transient suppression diodes, can inhibit a variety of surge pulse, protection module.
Product Part No.:
        WJ95 - RJ45

Communication Interface
                RJ45:
 RJ-45 output network interface

Datasheet Download : WJ95-RJ45 EN.pdf
