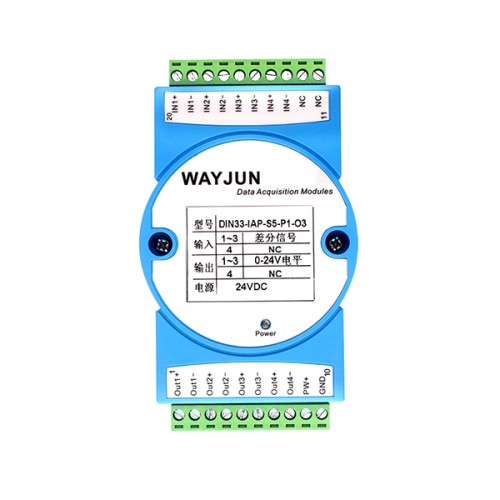

series encoder differential signal turn pulse signal transmitter DIN33SPO

Main features:

>> Encoder differential signal direct input to the pulse signal

>> Support A, B and Z three phase difference division conversion

>> 3 input, 3 output, output pulse amplitude value optional

>> Do not change the original waveform frequency, the response speed is 500kHz or more

>> Power, signal input, signal output 3000VDC three isolated

>> Power supply: 5V, 12V, 15V or 24V DC single power supply

>> Low cost, small volume, easy to use, high reliability

>> Standard DIN35 rail installation

>> Size: 120 mm x 70 mm x 43mm

>> Industrial grade temperature range: - 45 ~ + 85 ° C

Application:

>> Encoder differential signal isolation, acquisition and transformation

>> Encoder differential signal to 24V square wave pulse

>> Servo encoder differential signal to PLC

>> Pulse signal amplification and shaping

>> Ground interference inhibition

>> Motor speed monitoring system

>> Speed Measurement and Alarm

>> Signal Nothing Transmission and Transmission
