WAYJUN Hot product:High precision PWM pulse width modulated signal transduction signal isolation transmitter

Main features:

>> Precision Level: 0.1. The product has been verified before the factory is factory factory, and the user can use it directly.

>> Auxiliary power supply: 8-32V wide range

>> PWM pulse width modulated signal input: 1Hz ~ 100KHz

>> Output standard signal: 0-5V / 0-10V / 1-5V, 0-10mA / 0-20mA / 4-20mA, etc., high load capacity

>> High linearity in full range (nonlinearity <0.2%)

>> Standard DIN35 rail installation

>> Has strong anti-electromagnetic interference and high frequency signal interference ability

Application:

>> Digital Signal Transformation Analog Signal, DA Transformation

>> Isolation 4-20mA or 0-20mA signal transmission

>> Special signal isolation and transformation in industrial scene

>> PWM signal long line no distortion transmission

>> Instrumentation signal delivery

>> Electricity monitoring, medical device isolation

>> inverter signal isolation collection

>> PLC / FA Motor Signal Isolation Control

>> pulse width measurement

Product selection table:

DIN11 PWM - V/A□

output signal

Current

code

voltage

code

0-20ma

A3

0~5V

V1

4-20ma

A4

0-10V

V2

User-defined

Az

1-5V

V6





User-defined

Vz







Selection example:

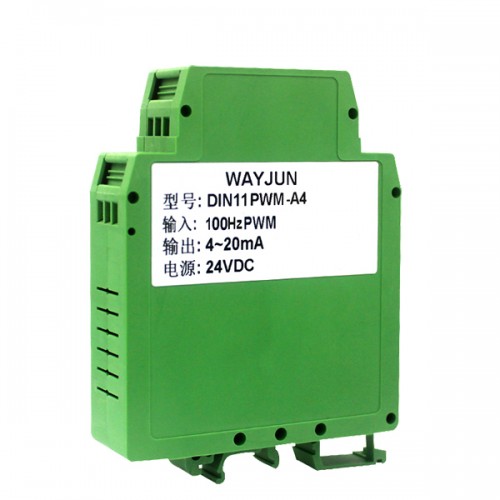

Example 1: Input Signal: 100Hz PWM Power Supply: 24V Output Signal: 4-20mA Model: DIN11 PWM-A4

Example 2: Input Signal: 5kHz PWM Power Supply: 12V Output Signal: 0-10V Model: DIN11 PWM -V2

Example 3: Input Signal: 20kHz PWM Power Supply: 24V Output Signal: 0-20mA Model: DIN11 PWM-A3

Write a review

Note: HTML is not translated!
    Bad           Good

High precision PWM pulse width modulated signal transduction signal isolation transmitter DIN11 PWM-A4

  • Product Code: DIN11 PWM-A4
  • Availability: In Stock
  • $54.99

  • Ex Tax: $54.99
