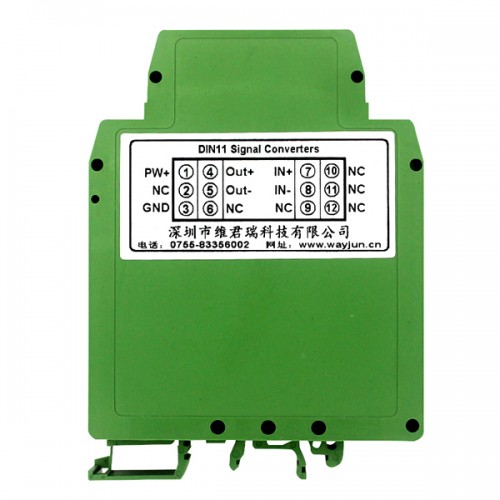

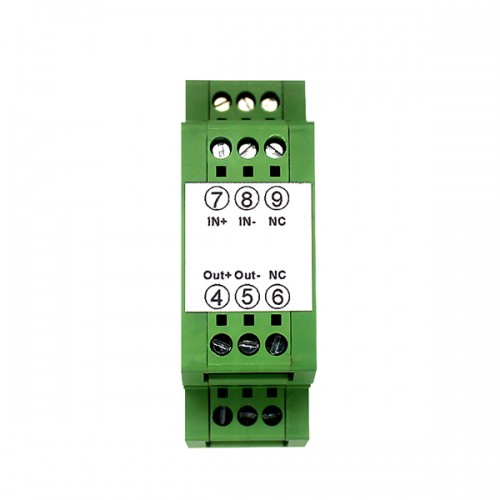

WAYJUN Product:DIN11 series frequency signal transformer or current signal isolation transmitter

Main features:

>> Accuracy Level: 0.2

>> High linearity in full range (nonlinearity <0.1%)

>> Auxiliary power / signal input / signal output: 2500VDC three isolated

>> Auxiliary power supply: 5VDC, 12VDC, 24VDC power supply

>> Enter frequency signal: 0-1kz / 0-5kHz / 0-10kHz

>> Output standard 0-2.5V / 0-5V / 0-10V voltage signal

Or 0-10mA / 0-20mA / 4-20mA current signal

>> Small volume, standard DIN35 rail installation

>> Industrial grade temperature range: -20 ~ + 85 ° C

Application:

>> Frequency sensor signal acquisition, isolation conversion

>> Inverter (FA) frequency signal data acquisition and control

>> Rotary Equipment Speed Monitoring of Generators, Motors

>> Transformer working frequency detection

>> Instrumentation and sensor signal delivery

>> Non-power signal transmission

>> Speed signal measurement


Write a review

Note: HTML is not translated!
    Bad           Good

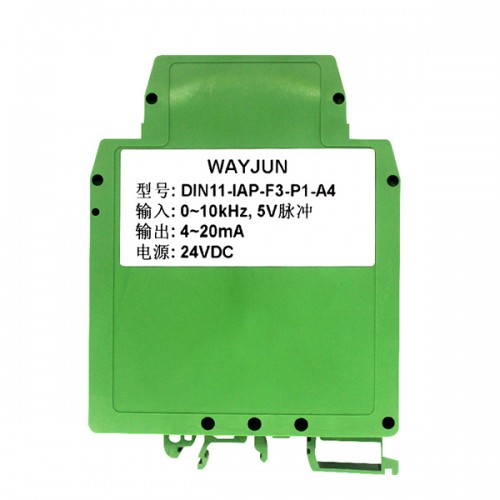

DIN11 series frequency signal transformer or current signal isolation transmitter DIN11-IAP-F3-P1-A4

  • Product Code: DIN11-IAP-F3-P1-A4
  • Availability: In Stock
  • $54.99

  • Ex Tax: $54.99
