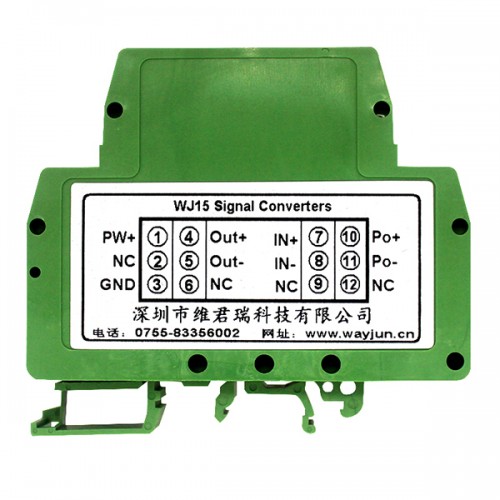

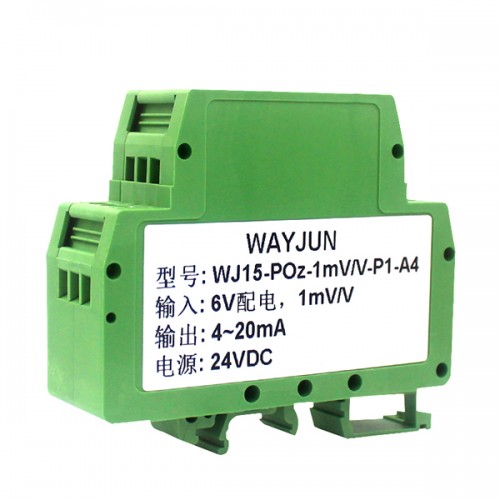

WAYJUN Hot produck: WJ15 series rail mounting pressure strain bridge signal isolation amplifier transmitter

product description:

     WJ15 pressure strain bridge signal processing series isolation amplifier is an amplifier to disconnect the differential input signal, converted into a DC signal rail mounting transfer module outputted. Products are widely used in electricity, remote monitoring, instrumentation, medical equipment, industrial self-control and other industries. This series of modules embed an efficient micropower power supply, providing an isolated power supply to the input and output and an analog signal output, an optical coupling isolation amplifier, and provides a reference voltage source output of 40mA of high load capacity, the product It greatly simplifies the user's design. Since the internal photoelectric isolation technology has better anti-EMC interference and spatial electromagnetic interference than electromagnetic isolation technology.

Features:

 Industrial grade temperature range: -40 ~ +85 ° C

 Power, signal: input / output 3000VDC three isolated

PWR: 5VDC, 12VDC, 15VDC, 24VDC ± 10% Single power supply> 5V power supply products are reversed inside.

 Products provide high load capacity reference voltages 5V or 10V to the pressure strain bridge circuit.

0-10MV / 0-20MV / 0- ± 10mV / 0- ± 20mV and other differential voltage signal input, international standard signal 0-5V / 0-10V / 4-20mA output.

 Standard DIN35 installation volume 80 * 70 * 25mm

 Strong anti-EMC electromagnetic interference and inhibiting high frequency signal spatial interference characteristics

 Use the environment: There is no large amount of dust, strong vibration impact in the surrounding environment, and a gas that has corrosive components

Applications

 Weigh the sensor signal transmission,

 overcome the loop crosstalk, strong electric interference

 Implementing mutual connection between analog signals

 analog signal ground wire interference suppression

 Non-power signal transmission

 Signal remote non-distortion transmission

 Overcome the interference brought by the inverter

Write a review

Note: HTML is not translated!
    Bad           Good

WJ15 series rail mounting pressure strain bridge signal isolation amplifier transmitter

  • Product Code: WJ15
  • Availability: In Stock
  • $39.99

  • Ex Tax: $39.99
