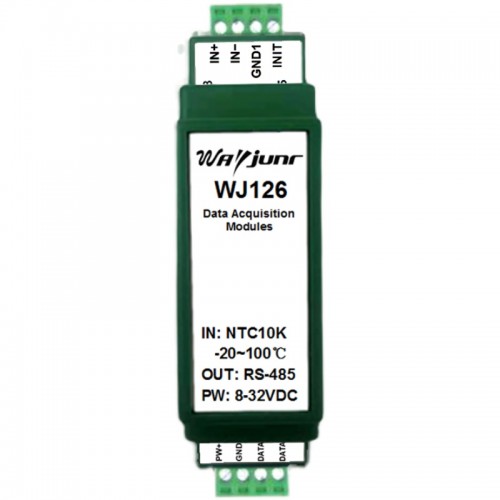

NTC turn RS-485, thermistor temperature modbus data acquisition module WJ126

Features:

● NTC10k / NTC20K resistance isolation conversion RS-485 output

● Internal MCU linearly processes the input resistance value

● 12-bit AD converter, measurement accuracy is better than 0.1%

● Program of calibration module via the RS-485 interface

● Signal input / output isolation withstand voltage 1000VDC

● Wide power supply range: 8 ~ 32VDC

● High reliability, convenient programming, easy to apply

● Standard DIN35 rail installation, convenient centralized wiring

● User programmable setting module address, baud rate, etc.

● Support MODBUS RTU communication protocol, automatic identification protocol

● Industrial flame retardant housing, RS485 port surge protection

● AD conversion rate can be programmed

typical application:

● NTC thermistor temperature signal measurement

● RS-485 remote I / O, data collection

● Intelligent building control, security engineering and other application systems

● RS485 bus industrial automation control system diagram

● Industrial field signal isolation and long-term transmission

● Equipment operation monitoring

● Measurement of sensor signals

● Acquisition and record of industrial field data

● Medical, industrial control product development

product description:

WJ126 product implements multiple signal acquisitions between sensors and hosts to detect temperature signals. WJ126 series products can be applied to RS-485 bus industrial automation control systems, temperature signal measurement, monitoring and control, etc.

Products include power isolation, signal isolation, linearization, A / D conversion, and RS-485 serial communication. Each serial port can be connected up to 255 WJ126 series modules, communication mode uses ASCII code communication protocol or Modbus RTU communication protocol, address and baud rate can be set by code settings, can hang on the same RS-485 bus with other manufacturers' control modules, It is easy to program.

WJ126 series products are based on a single-chip intelligent monitoring and control system, all user setting calibration values, address, baud rates, data formats, checksum, and other configuration information stored in non-volatile memory EEPROM.

WJ126 series products are isolated between industrial standards, manufacturing, signal input / output, can withstand 1000VDC isolation voltages, strong anti-interference ability, high reliability. Working temperature range - 45 ° C ~ + 85 ° C.
