WAYJUN Hot product:  Industrial grade RS-232 turn RS-485 isolation module

product description:

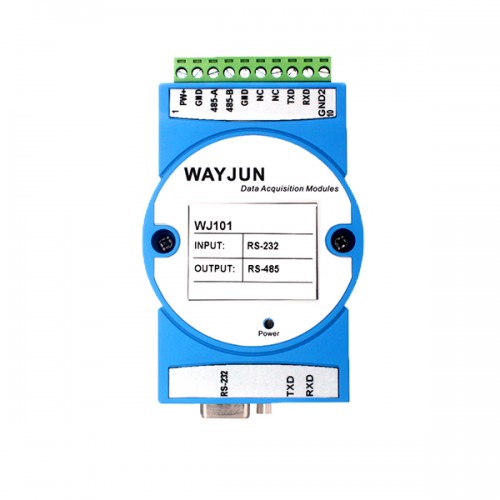

WJ101 is a industrial-grade RS232 revolutionary RS485 isolation converter developed by Vunduri Technology. The isolation converter is used to convert the RS232 signal to the RS485 signal, and the data achieves transparent transmission, the communication is stable and reliable, and the industry is relatively high.

WJ101 series includes power conditioning, RS232 interface communication and RS485 interface communication. Wide range is 8-32VDC, the power supply is common to the RS485, and is isolated from the RS232 interface 3000V, and the power supply has anti-reverse protection function. RS485 communication interface high anti-interference design, ± 15kV ESD protection. The product is designed according to industrial grade standards, operating temperature range - 45 ° C ~ + 85 ° C.


● Compatible with RS-232, RS-485 TIA / EIA standard

● Support baud rate 300 to 115200bps

● Communication baud rate automatic adjustment

● Data transmission and reception automatic adjustment

● Transparent transmission, do not change the communication protocol

● Wide range operating power 8-32VDC

● RS-232 and RS-485 3000V isolation

typical application:

● Serial port signal remote transmission

● For field equipment communication

● Intelligent building control, security engineering and other application systems

● Industrial automation control system

● Industrial field signal isolation and long-term transmission

● Equipment operation monitoring and control

● Conversion and transmission of sensor signals

● Acquisition and conversion of industrial field data

● RS232 and RS485 signal conversion

WJ101 universal parameters:

(Typical @ + 25 ° C, VS is 24VDC)

Transmission distance: RS232 - 15 meters,

              RS485 - 1000 meters (1200bps)

Communication: RS-232 turn RS-485 transparent transmission

Porter rate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200BPS adaptive

Working method: asynchronous half-duplex

Interface: RS232 interface and RS485 interface, the RS232 interface can select DB9 connector or terminal block

Drive ability: up to 255 RS485 devices per module

Working power supply: +8 ~ 32VDC wide power supply range, there is anti-reverse and overvoltage protection circuit

Power consumption: less than 1W

Work temperature: - 45 ~ + 80 ° C

Work humidity: 10 ~ 90% (no condensation)

Storage temperature: - 45 ~ + 80 ° C

Storage humidity: 10 ~ 95% (no condensation)

Isolation and pressure: 3000VDC Isolation between RS232 and RS485

Interface protection: RS-485 interface 15KV ESD protection, and lightning protection anti-surge and other functions.

Dimensions: 120 mm x 70 mm x 43mm

Write a review

Note: HTML is not translated!
    Bad           Good

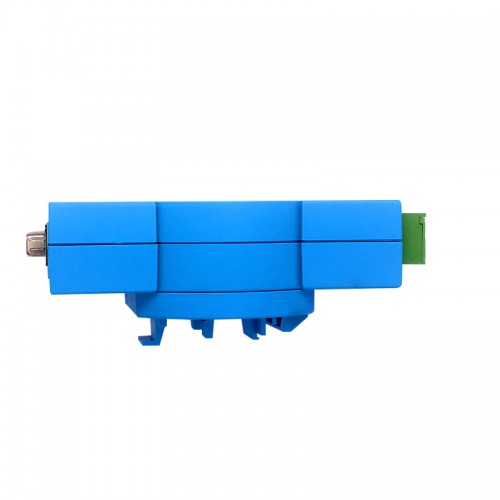

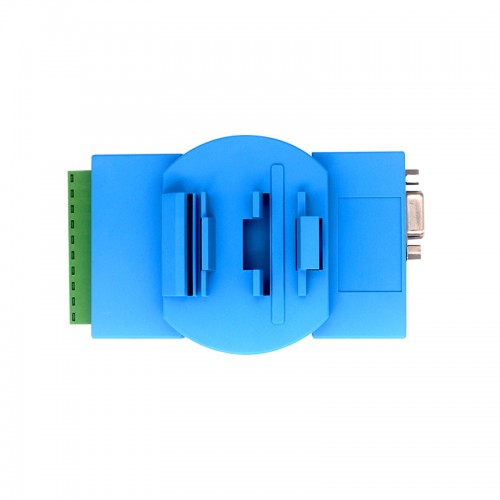

Industrial grade RS-232 turn RS-485 isolation module WJ101

  • Product Code: WJ101
  • Availability: In Stock
  • $19.99

  • Ex Tax: $19.99
