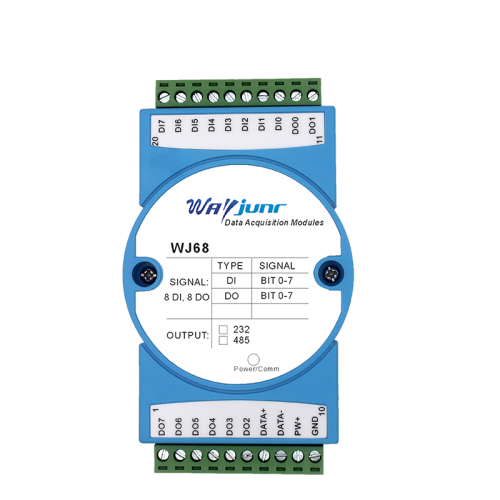

WAYJUN Hot Product:Eight Road PNP input, eight-way PNP output, RS-485/232 switch data acquisition module WJ68
Features:
● Eight-circuit PNP switch input, eight-way PNP switch output
● You can read the level state of the input via the RS-485/232 interface.
● Output status can be set via the RS-485/232 interface
● Signal input, output, and power supply are not separated
● Wide power supply range: 8 ~ 32VDC
● High reliability, convenient programming, easy to apply
● Standard DIN35 rail installation, convenient centralized wiring
● User programmable setting module address, baud rate, etc.
● Support MODBUS RTU communication protocol, automatic identification protocol
● Low cost, small volume, modular design
● Dimensions: 120 x 70 x 43mm
typical application:
● Level signal measurement, monitoring and control
● RS-485 remote I / O, data collection
● Intelligent building control, security engineering and other application systems
● RS-232/485 bus industrial automation control system
● Industrial field signal isolation and long-term transmission
● Equipment operation monitoring and control
● Measurement of sensor signals
● Acquisition and record of industrial field data
● Switch quantity signal acquisition
product description:
WJ68 product implements signal acquisition and control between sensors and hosts to detect switching signals, or control the device. WJ68 series products can be applied to the RS-232/485 bus industrial automation control system, switch quantity signal measurement and control, measurement and output of high and low level signals, and industrial field signal isolation and long line transmission, etc.
Products include power conditioning, switching, switch output, and RS-485 serial communication. Each serial port can be connected up to 255 WJ68 series modules. The communication mode uses the ASCII code communication protocol or the Modbus RTU communication protocol. The baud rate can be set by the code setting, which can be hung on the same RS-485 bus with other manufacturers' control modules. Program.
The WJ68 series is based on the intelligent monitoring and control system of single chip microcomputers, all users set, baud rates, data formats, checksum and other configuration information stored in non-volatile memory EEPROM.
WJ68 series products are not isolated between industrial standards, manufacturing, signal input / output, strong anti-interference ability, high reliability. Working temperature range - 45 ° C ~ + 85 ° C.

Write a review

Note: HTML is not translated!
    Bad           Good

Eight Road PNP input, eight-way PNP output, RS-485/232 switch data acquisition module WJ68

  • Product Code: WJ68
  • Availability: In Stock
  • $58.33

  • Ex Tax: $58.33
