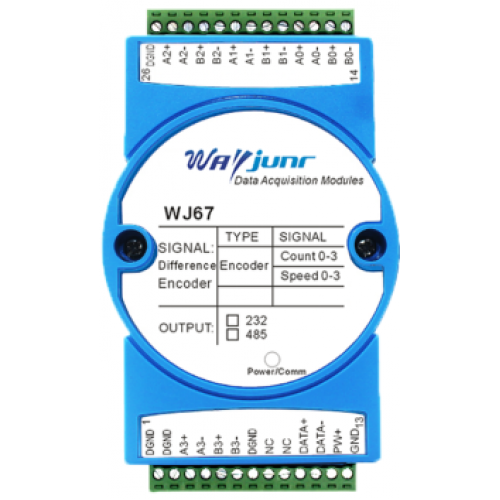

WAYJUN Hot product : 4-way difference encoder pulse counter, speed measurement, Modbus RTU module WJ67

product description:
WJ67 product implements signal acquisition between sensors and hosts to decode encoder signals. WJ67 series can be applied to the RS-232/485 bus industrial automation control system, automated machine tool, industrial robot, three coordinate positioning system, displacement measurement, stroke measurement, angular measurement, speed measurement, flow measurement, product count, etc.
Products include signal isolation, pulse signal capture, signal conversion, and RS-485 serial communication. Each serial port can be connected to 255 WJ67 series modules, communication mode uses the ASCII code communication protocol or Modbus RTU communication protocol, the baud rate can be set by the code, can be hung on the same RS-485 bus with the control module of other manufacturers, easy to computers Program.

The WJ67 series is based on the intelligent monitoring and control system of single chip microcomputer. All user settings, baud rates, data formats, checksum, and other configuration information stored in non-volatile memory EEPROM.
WJ67 series products are not isolated between industrial standards, manufacturing, signal input / output, strong anti-interference ability, high reliability. Working temperature range - 45 ° C ~ + 85 ° C.


● Encoder decoding into standard Modbus RTU protocol

● Encoder 5V differential signal direct input

● Can be used as an encoder counter or a speed measurement

● Supports 4 encoders to count at the same time, can identify positive reversal

● You can also set as an 8-way independent DI high-speed counter

● Encoder count value supports power-saving automatic save

● 3000V isolation between Di input and power supply

● Clear and set the count value via the RS-485/232 interface.

● Wide power supply range: 8 ~ 32VDC

● High reliability, convenient programming, easy to apply

● Standard DIN35 rail installation, convenient centralized wiring

● User programmable setting module address, baud rate, etc.

● Dimensions: 120 mm x 70 mm x 43mm

typical application:

● Encler pulse signal measurement

● Flowmeter pulse count or flow measurement

● Production line product count

● Quantity count of logistics package

● Close to switch pulse signal measurement

● Encoder signal is remote to the industrial computer

● Intelligent factory and industrial network

● Replace PLC direct data to the control center
