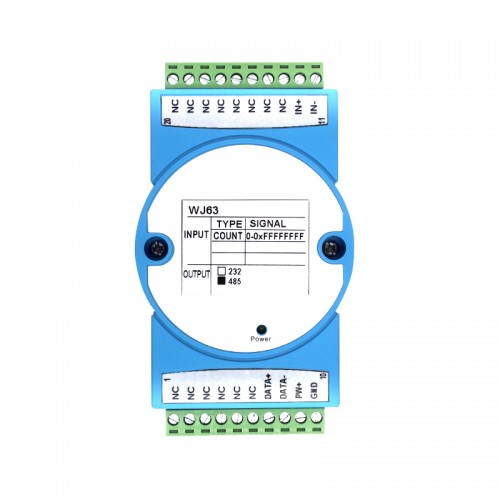

8-way DI high-speed counter, 8 channels support PWM output, Modbus RTU module WJ63

product description:

WJ63 product implements signal acquisition between sensors and hosts, used to pulse signal counting and device control. WJ63 series products can be applied to the RS-232/485 bus industrial automation control system, photoelectric switch signal count measurement, PWM signal output and frequency measurement, and the like.

Products include signal isolation, pulse signal capture, signal conversion, and RS-485 serial communication. Each serial port can be connected to 255 WJ63 series modules. The communication mode uses the ASCII code communication protocol or the Modbus RTU communication protocol. The baud rate can be set by code settings, can be hung on the same RS-485 bus with other manufacturers' control modules, easy to computer Program.

The WJ63 series is based on a single-chip intelligent monitoring and control system, all user settings, baud rates, data formats, checksum, and other configuration information stored in non-volatile memory EEPROM.

WJ63 series products are isolated from industrial standards, manufacturing, signal input / output, can withstand 3000VDC isolation voltages, strong anti-interference ability, high reliability. Working temperature range - 45 ° C ~ + 85 ° C.

typical application:

● Close to switch pulse signal measurement

● Flowmeter pulse count or flow measurement

● Production line product count

● Quantity count of logistics package

● LED light control or motor control

● Industrial computer external counter

● Intelligent factory and industrial network

● Measurement of pulse sensor signals

● Industrial camera status monitoring and control


● 8 switch input, 8 switch output

● DI can be used as a counter or frequency measurement per way

● DO can independently output PWM signals per way

● You can read the count value via the RS-485/232 interface.

● Support RS-485/232 interface setting PWM output

● Wide power supply range: 8 ~ 32VDC

● High reliability, convenient programming, easy to apply

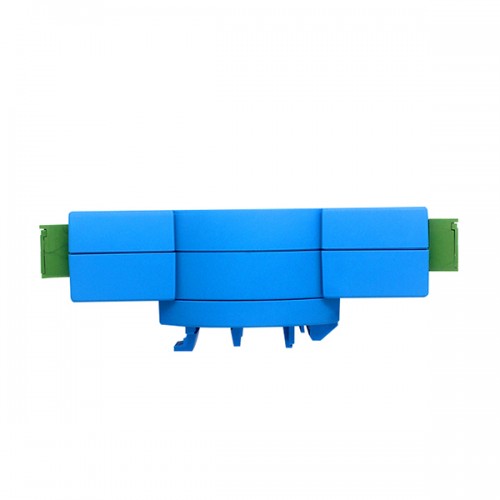

● Standard DIN35 rail installation, convenient centralized wiring

● User programmable setting module address, baud rate, etc.

● Support MODBUS RTU communication protocol, automatic identification protocol

● Low cost, small volume modular design

● Dimensions: 120 mm x 70 mm x 43mm

WJ63 general parameters:

(Typical @ + 25 ° C, VS is 24VDC)

Enter type: switch input, 8 channels (DI0 ~ DI7).

             Low level: Enter <1V

             High level: input 3.5 ~ 30V

             Frequency range 0-20khz

             Counting range 0-0xffffffffff

Input resistance: 30kΩ

Output type: The collector open circuit output, voltage 0 ~ 30V, maximum load current 30mA, 8 channels (DO0 ~ DO7).

             PWM frequency 1 ~ 65535Hz, duty cycle 0% ~ 100%

Communication: Protocol RS-485 or RS-232 Standard Character Protocol and Modbus RTU Communication Agreement

             Baud Rate (2400, 4800, 9600, 19200, 38400, 57600, 115200 bps) can be selected

Address (0 ~ 255) can be software selection

Communication Response Time: 100 MS Max

Working power supply: +8 ~ 32VDC wide power supply range, there is anti-reverse and overvoltage protection circuit

Power consumption: less than 0.5W

Work temperature: - 45 ~ + 80 ° C

Work humidity: 10 ~ 90% (no condensation)

Storage temperature: - 45 ~ + 80 ° C

Storage humidity: 10 ~ 95% (no condensation)

Isolation, pressure: input / output: 3kVDC, 1 minute, leakage current 1mA

             Where RS-232 / RS-485 output and power supply are common.

Impact resistant voltage: 3kVAC, 1.2 / 50US (peak)
