Features:
>> 16 channels analog signal acquisition, isolated converter RS-485/232 output
>> 24-bit AD converter, accuracy>0.05%
>> 4-20mA/0-20mA current signal or 0-5V/0-10V voltage signal input
>> RS-485/232 interface can be programmed calibration module accuracy
>> Signal input / output:3000VDC isolation
>> Wide supply range: 8 ~ 32VDC
>> High reliability, easy programming, easy to apply
>> Standard DIN35 rail mounting
>> User-programmable settings module address, baud rate, etc.
>> Support the Modbus RTU protocol
>>
AD conversion rate can be programmed
>> Size:120x60x43mm
Typical applications:
>> signal measurement, monitoring and control
>> RS-485 remote I / O, data acquisition
>> application of intelligent building control, security engineering
>> industrial automation control system, the RS-232/485 bus
>> Industrial signal isolation and long-term transmission
>> equipment operation and monitoring
>> measurement of sensor signals
>> the industrial data acquisition and recording
>> medical, industrial and product development

Product List:

                                WJ29  -  U(A)□  -
Input voltage or current signal                         Communication Interface
U10-5V                   A10-1mA                   485: RS-485 output interface
U20-10V                A20-10mA                 232: RS-232 output interface
U30-75mV             A30-20mA
U40-2.5V                A44-20mA
U50-±5V                 A50-±1mA
U60-±10V               A60-±10mA
U7: 0-±100mV         A70-±20mA
U8: user-defined     A8user-defined

Selection Samples:
Part No.:WJ29-A4-485     (means 16 channels 4-20mA input,ouput is RS485 interface)
Part No.:WJ29-U1-232    (means 16 channels 0-5V input,output is RS232 interface)
Part No.:WJ29-U2-485    (means 16 channels 0-10V input,output is RS485 interface)
Part No.:WJ29-U8-485(U8:0-12V) (means 16 channels 0-12V                                      input,output is RS485 interface)

Note:when you order ,please choose your input and output or note your Part No..

Write a review

Note: HTML is not translated!
    Bad           Good

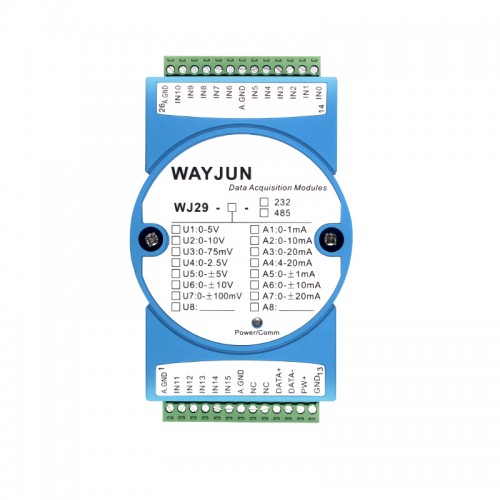

16-CH Analog Signal 4-20mA or 0-10V to RS485/232 Modbus Rtu Converters WJ29

  • Product Code: WJ29
  • Availability: In Stock
  • $106.25

  • Ex Tax: $106.25
