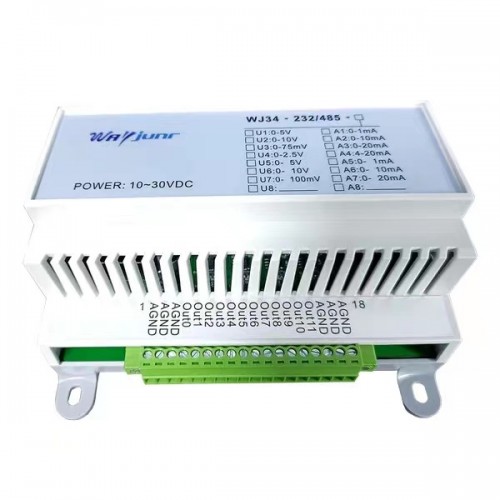

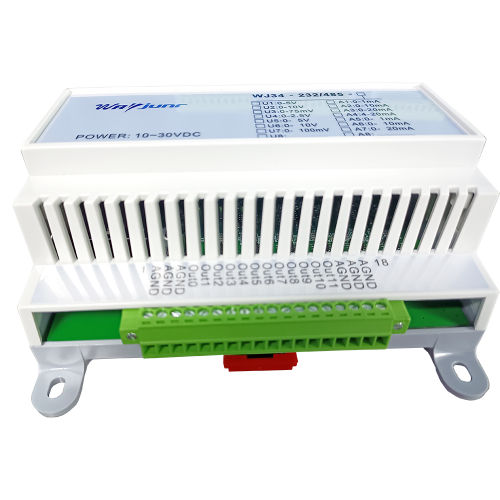

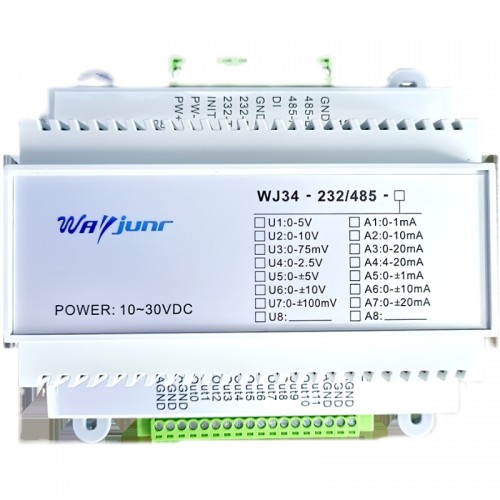

RS232 / RS485 Signal 12 Road Analog Signal Isolation D / A Converter WJ34

Features:

● RS-485/232 interface, isolation to 12 standard analog signal output

● Optional output 4-20mA or 0-10V controls other devices

● The analog signal output accuracy is better than 0.2%

● Program control calibration module output accuracy

● Signal output / communication interface isolation withstand voltage 3000VDC

● Wide power supply range: 10 ~ 30VDC

● High reliability, convenient programming, easy to install and wiring

● User programmable setting module address, baud rate, etc.

● Support MODBUS RTU communication protocol, automatic identification protocol

● Standard DIN35 rail installation, plug-in terminal

● Dimensions: 128 x 132 x 58mm

typical application:

● 0-10V standard analog signal output

● Intelligent building control, security engineering and other application systems

● RS-232/485 bus industrial automation control system

● Light control, LED intelligent dimming control

● Equipment operation debugging and control

● Remote transmission and signal restore of sensor signals

● Given the industrial field actuator data

● Medical, industrial control product development

● 4-20mA signal output

product description:

WJ34 Series Product Realization Host RS-485/232 Interface Signals Convert to standard analog signals to control remote devices. WJ34 series products can be applied to RS-232 / RS-485 bus industrial automation control systems, 4-20mA, 0-5V, 0-10V and other standard signal output, used to control industrial site executive equipment, control equipment, and display instruments, etc. Wait.Products include power isolation, signal isolation, linearization, D / A conversion, and RS-485 serial communication. Each serial port can be connected up to 255 WJ34 series modules, communication mode uses the ASCII code communication protocol and the Modbus RTU communication protocol, automatically identify communication protocols and reply, the baud rate can be set by the code, can hang the same RS with other manufacturers The -485 bus is easy to program.

WJ34 series products are based on a single-chip intelligent monitoring and control system, all user set calibration values, address, baud rates, data formats, checksum, and other configuration information stored in non-volatile memory EEPROM.

WJ34 series products are isolated from industrial standards, manufacturing, signal output / communication interfaces, can withstand 3000VDC isolation voltages, strong anti-interference ability, high reliability. Working temperature range - 45 ° C ~ + 80 ° C.

WJ34 general parameters:

(Typical @ + 25 ° C, VS is 24VDC)

Output Type: Current Output / Voltage Output

Essence: 0.2%

Output offset: current output ± 0.5 UA / ° C, voltage output ± 0.1 mV / ° C

Temperature drift: ± 20 ppm / ° C (± 30 ppm / ° C, max)

Output load capacity: current output 350Ω (4-20mA / 0-20mA / 0- ± 20mA current output)

              Voltage output 10mA (0-5V / 0-10V / 0- ± 5V voltage output)

Communication: Protocol RS-485 and RS-232 Standard Character Protocol and Modbus RTU Communication Agreement

             Porter rate (2400, 4800, 9600, 19200, 38400, 57600, 115200 bps) can be available

Address (0 ~ 255) can be software selection

Communication Response Time: 100 MS Max

Working power supply: +10 ~ 30VDC wide power supply range, there is anti-reverse and overvoltage protection circuit

Power consumption: less than 5W

Work temperature: - 45 ~ + 80 ° C

Work humidity: 10 ~ 90% (no condensation)

Storage temperature: - 45 ~ + 80 ° C

Storage humidity: 10 ~ 95% (no condensation)

Isolation and pressure: three isolated between communication interface / output / power supply: 3kVDC, 1 minute, leakage current 1mA

             Among them, the 12-way analog is output.

Impact resistant voltage: 3kVAC, 1.2 / 50US (peak)

Dimensions: 128mm x 132 mm x 58mm
