WAYJUN New product：3-way DI counter, 2-way PWM output, Modbus TCP protocol, WiFi module

Features:

● 3 switch input, 2 switch output

● DI can be used as a counter or frequency measurement per way

● DO can independently output PWM signals per way

● Support Modbus TCP Communication Protocol

● Built-in web feature, you can query the level via the web page

● You can set the output status via the web page.

● Wide power supply range: 8 ~ 32VDC

● High reliability, convenient programming, easy to apply

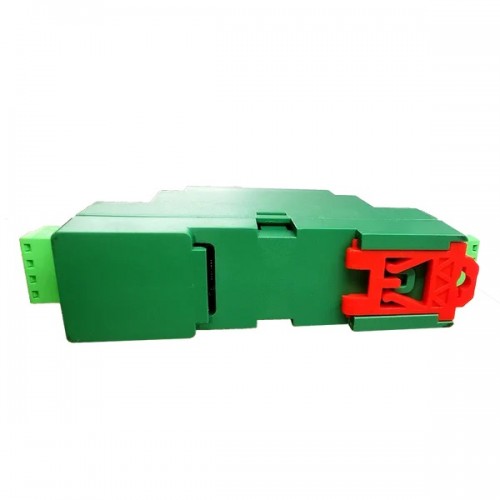

● Standard DIN35 rail installation, convenient centralized wiring

● The user can set the module IP address and other parameters on the web page.

● Low cost, small volume, modular design

● Dimensions: 79 x 69.5x 25mm

typical application:

● Flowmeter pulse count or flow measurement

● LED light control or motor control

● Intelligent building control, security engineering and other application systems

● Ethernet industrial automation control system

● Industrial field signal isolation and long-term transmission

● Equipment operation monitoring and control

● Measurement of sensor signals

● Industrial camera status monitoring and control

● Internet of Things switch quantity signal acquisition

product description:

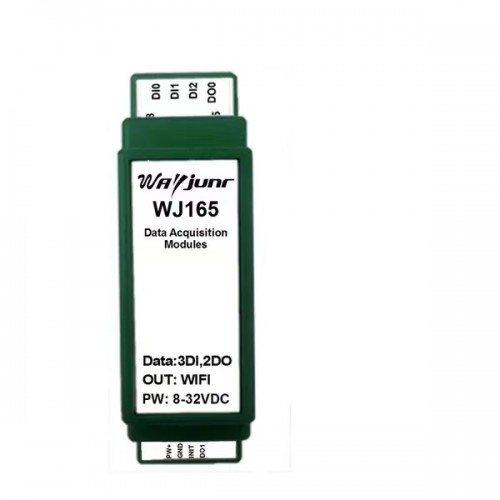

WJ165 products are an Internet of Things and Industrial Ethernet Acquisition Modules that achieve transparent data interaction between sensors and networks. You can forward the data of the sensor to the network, or forward data from the network to the sensor.

WJ165 Series products include power conditioning, switching, triode output, and WiFi interface communication. The communication mode uses the Modbus TCP protocol. TCP is based on the transmission layer, which is a wide and connected reliability protocol. Users can set the module IP address, subnet mask, etc. directly on the web page. Can be used to monitor operational monitoring and control of sensor equipment.

The WJ165 series is based on the smart monitoring and control system of the microcontroller, and the user setting module IP address, the subnet mask and other configuration information are stored in the nonvolatile memory EEPROM.

WJ165 Series products are designed, manufactured, anti-interference capabilities, high reliability. Working temperature range - 45 ° C ~ + 80 ° C.

WJ165 general parameters:

(Typical @ + 25 ° C, VS is 24VDC)

Enter type: switch input, 3 channels (Di0 ~ Di2).

              Low level: Enter <1V high level: input 3.5 ~ 30V

              Frequency range 0-20khz

              Counting range 0-0xffffffffff

Input resistance: 30kΩ

Output Type: The collector opening output, voltage 0 ~ 30V, maximum load current 30mA, 2 channel (DO0 to DO1).

              PWM frequency 100 ~ 1000Hz, duty cycle 0% ~ 100%

Textual: Modbus TCP Communication Agreement

Network page: Support web access module, support web page setting module parameters.

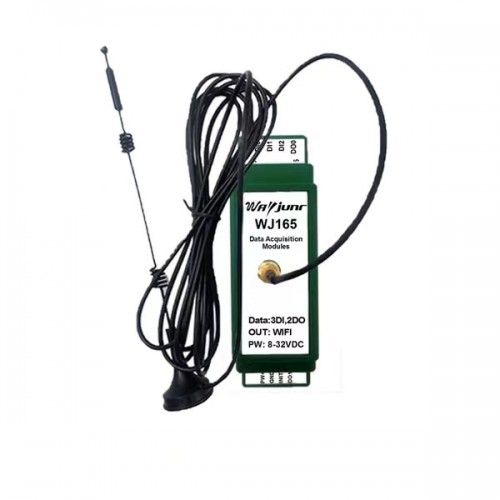

Interface: WiFi network interface.

Working power supply: +8 ~ 32VDC wide power supply range, there is anti-reverse and overvoltage protection circuit

Power consumption: less than 1W

Work temperature: - 45 ~ + 80 ° C

Work humidity: 10 ~ 90% (no condensation)

Storage temperature: - 45 ~ + 80 ° C

Storage humidity: 10 ~ 95% (no condensation)

Isolation, pressure: non-isolated

Dimensions: 79 mm x 69.5mm x 25mm
