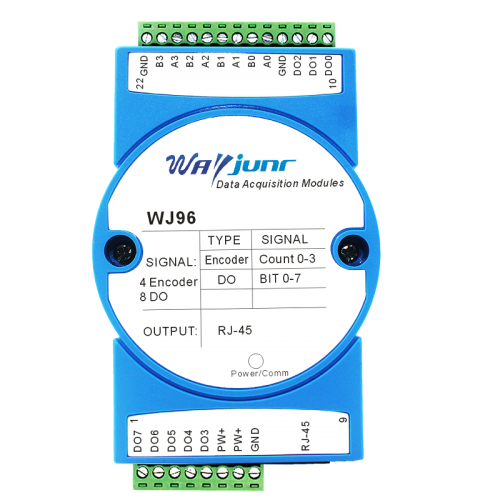

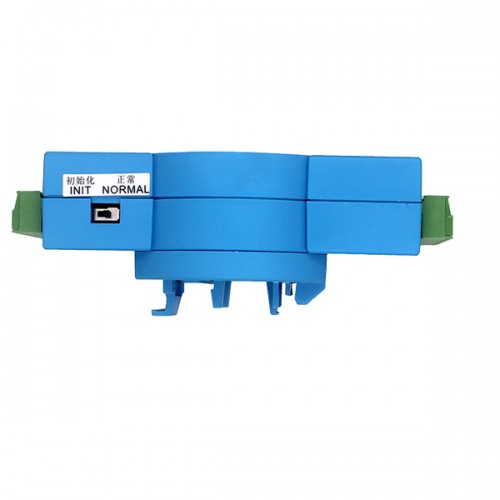

WAYJUN Produck: 4-channel encoder pulse counter, 8 channels do, modbus TCP module WJ96
product description:
WJ96 product implements signal acquisition between sensors and hosts to decode encoder signals and device control. WJ96 Series can be applied to Internet of Things and Industrial Ethernet control systems, automated machine tools, industrial robots, three coordinate positioning systems, displacement measurements, stroke measurements, angular measurements, speed measurements, and more.
WJ96 Series includes power conditioning, encoder signal acquisition, triode output, and RJ-45 network interface communication. The communication mode uses the Modbus TCP protocol. TCP is based on the transmission layer, which is a wide and connected reliability protocol. Users can set the module IP address, subnet mask, etc. directly on the web page. Can be used to monitor operational monitoring and control of sensor equipment.
The WJ96 series is based on the intelligent monitoring and control system of the microcontroller, and the user set the module IP address, the subnet mask and other configuration information stored in the non-volatile memory EEPROM.
WJ96 Series products are designed, manufactured, anti-interference capacity, high reliability. Working temperature range - 45 ° C ~ + 85 ° C.
Features:
● Encoder decoding into standard Modbus RTU protocol
● Can be used as an encoder counter or a speed measurement
● Supports 4 encoders to count at the same time, can identify positive reversal
● Built-in 8 Does can be used as the encoder upper and lower limit alarm output
● Power-off automatic saving counter data
● Built-in DO can output PWM signals independently
● Support Modbus TCP Communication Agreement
● Built-in web feature, you can query the level via the web page
● Wide power supply range: 8 ~ 32VDC
● High reliability, convenient programming, easy to apply
● Standard DIN35 rail installation, convenient centralized wiring
● The user can set the module IP address and other parameters on the web page.
● Web login can set password, safer
● Low cost, small volume, modular design
● Dimensions: 120 x 70 x 43mm
typical application:
● Encler pulse signal measurement
● Displacement or angular measurement
● Motor speed measurement and control
● Replace the meter to control multiple devices
● Encoder signal is remote to the industrial computer
● Intelligent factory and industrial network
● Replace PLC direct data to the control center
● Internet of Things switch quantity signal acquisition
WJ96 universal parameters:
(Typical @ + 25 ° C, VS is 24VDC)
Input Type: Encoder AB signal input, 4 channels (A0 / B0 ~ A3 / B3).
Low level: Enter <1V
High level: input 3.5 ~ 30V
Frequency range 0-50khz
Counting range - 2147483647 ~ +2147483647, automatic power saving
Input resistance: 30KΩ
Output type: The collector open circuit output, voltage 0 ~ 30V, maximum load current 30mA, 8 channels (DO0 ~ DO7).
PWM frequency 1 ~ 65535Hz, duty cycle 0% ~ 100%
Textual: Modbus TCP Communication Agreement
Network page: Support web access module, support web page setting module parameters.
Interface: RJ-45 network interface, built-in isolation transformer.
Working power supply: +8 ~ 32VDC wide power supply range, there is anti-reverse and overvoltage protection circuit
Power consumption: less than 1W
Work temperature: - 45 ~ + 80 ° C
Work humidity: 10 ~ 90% (no condensation)
Storage temperature: - 45 ~ + 80 ° C
Storage humidity: 10 ~ 95% (no condensation)
Isolation, pressure: non-isolated
Dimensions: 120 mm x 70 mm x 43mm
4-channel encoder pulse counter, 8 channels do, modbus TCP module WJ96
- Product Code: WJ96
- Availability: In Stock
-
$66.50
- Ex Tax: $66.50
