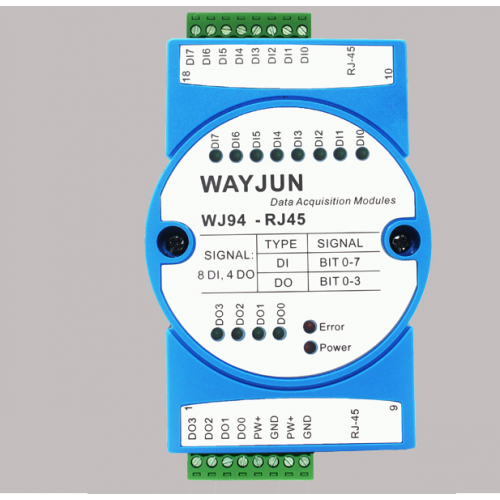

8 Road Di Tong 4 Road Do,High Speed Ethernet Communication Socket Free Agreement Remote IO Module WJ94


● 8 road switch amount input, 4 switch output output

● DI status changes automatically send status data, capture pulses

● Do using PNP output, you can directly drive intermediate relays

● Support MODBUS TCP Communication Protocol at the same time

● Built-in web feature, you can query and control via web pages

● Dual network port supports chrysanthemum chain connection convenient wiring

● Wide power supply range: 8 ~ 32VDC

● High reliability, convenient programming, easy to apply

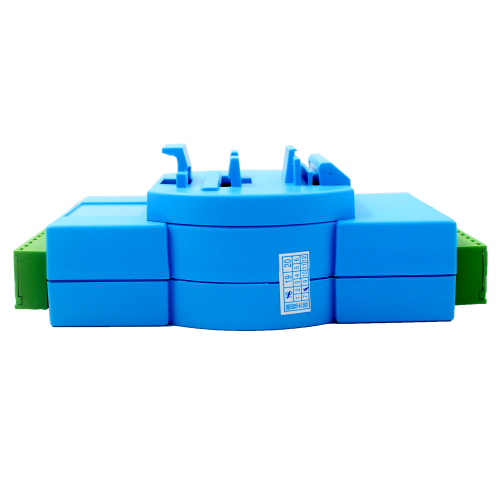

● Standard DIN35 rail installation, convenient centralized wiring

● The user can set the module IP address and other parameters on the web page.

● Web login can set password, safer

● Low cost, small volume, modular design

● Dimensions: 120 x 70 x 43mm

typical application:

● Directly control the electric roller drive card

● Replace the PLC control to achieve remote control, reduce cost

● Intelligent logistics warehouse automatic sorting system

● Ethernet industrial automation control system

● Intelligent lighting lighting control system

● Equipment operation monitoring and control

● Measurement of sensor signals

● Industrial camera status monitoring and control

● Internet of Things switch quantity signal acquisition

product description:

WJ94 products are an Internet of Things and Industrial Ethernet Acquisition Modules that achieve transparent data interactions between sensors and networks. You can forward the data of the sensor to the network, or forward data from the network to the sensor

WJ94 series includes power conditioning, switching, triode output, and RJ-45 network interface communication. The communication mode uses the Modbus TCP protocol. TCP is based on the transmission layer, which is a wide and connected reliability protocol. Users can set the module IP address, subnet mask, etc. directly on the web page. Can be used to monitor operational monitoring and control of sensor equipment.

The WJ94 series is based on the intelligent monitoring and control system of the microcontroller, and the user set the module IP address, the subnet mask and other configuration information stored in the non-volatile memory EEPROM.

Write a review

Note: HTML is not translated!
    Bad           Good

8 Road DI Tong 4 Road DO,High Speed Ethernet Communication Socket Free Agreement Remote IO Module WJ94

  • Product Code: WJ94
  • Availability: In Stock
  • $74.99

  • Ex Tax: $74.99
