WJ89 series 16-CH 4-20mA to Modbus TCP Network Data Acquisition module

>> Sixteen channels 4-20mA current/voltage input MODBUS TCP communication protocol
>> Input voltage signal can choose 0-5V or 0-10V
>> The built-in web page function can query data through web pages
>> Support socket communication using character communication protocol
>> 3000V isolation between 4-20mA signal input and power supply
>> Wide power supply range: 8 ~ 32VDC
>> DIN35 Rail-mounted
>> User can set up module IP address and other parameters on
 the web pages
>> Web login can be set up accounts and passwords, more secure
>> Dimensions: 120 mm x 70 mm x 43mm
>> Industrial Ethernet analog signal monitoring and control
>> It is used for Internet of things, real-time monitoring network
     and field equipment communication
>> Intelligent building control, security engineering applications
>> Ethernet industrial automation control system
>> Industrial signal isolation and long-term transmission
>> Equipment operation monitoring
>> Monitoring and control of equipment operation
>> Measurement of sensor signals
>> Internet of things acquisition and recording
>> Internet of things analog signal acquisition
Product Overview:
    WAYJUN WJ89 series products are a collection module of Internet of Things and Industrial Ethernet, which realizes transparent data interaction between sensor and network. Can forward the sensor data to the network, or the data from the network to the sensor.
Selection Guide:

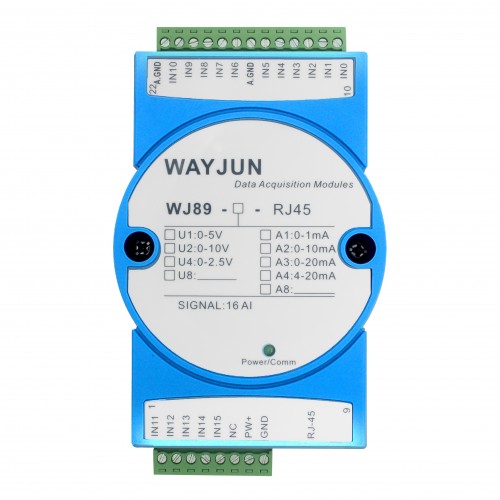

                            WJ89    -   U(A)□     -   RJ45
Input voltage or current signal          Communication Interface
U10-5V                     A10-1mA           RJ45: RJ45  output network interface
U20-10V                   A20-10mA
U40-2.5V                 A44-20mA
U8: user-defined      A8user-defined
Selection Samples:
Part No.:WJ89-A4-RJ45     (means 16 channels 4-20mA input,ouput is RJ45 interface)
Part No.:WJ29-U1-RJ45    (means 16 channels 0-5V input,output is RJ45 interface)
when you order,please note your type No. or parameters.
