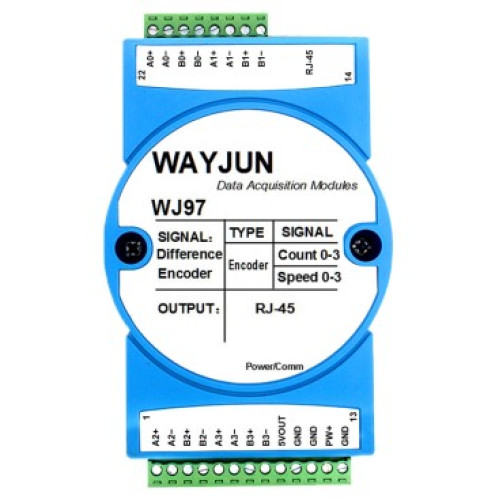

4-channel grating ruler magnetic grating ruler encoder 5MHz high-speed differential signal to Modbus TCP network module WJ97

Product features:

Decoding and converting grating ruler magnetic grating ruler into standard Modbus TCP protocol

Direct input of 5V differential signal with grating ruler, 4-fold frequency counting

The module can output a 5V power supply to power the grating ruler

High speed grating ruler magnetic grating ruler counting, with a frequency of up to 5MHz

Supports simultaneous counting of 4 grating rulers, capable of recognizing forward and reverse rotation

All data can be viewed directly on the webpage without the need for other software

Encoder count value supports automatic saving after power outage

● Isolation between DI inputs and network communication interfaces

Through the network communication interface, it is possible to reset and set the count value

Wide power supply range: 8~32VDC

High reliability, easy programming, and easy application

Standard DIN35 rail installation for convenient centralized wiring

Users can set module IP address and other parameters through web pages

External dimensions: 120 mm x 70 mm x 43mm

Typical applications:

● Measurement of grating ruler magnetic grating ruler length

● Flow meter pulse counting or flow measurement

● Counting of production line products

● CNC machine tool position data measurement

Encoder signal is transmitted remotely to the industrial computer

● Intelligent factory and Industrial internet of things

Replacing PLC to directly transmit data to the control center

Product Overview:

The WJ97 product achieves signal acquisition between sensors and the host, used to decode the signal of the grating ruler magnetic grating ruler encoder. The WJ97 series of products can be applied in Ethernet bus industrial automation control systems, automated machine tools, industrial robots, three coordinate positioning systems, displacement measurement, stroke measurement, angle measurement, rotational speed measurement, flow measurement, product counting, and so on.

The products include signal isolation, pulse signal capture, signal conversion, and Ethernet communication. The communication method adopts ASCII code communication protocol or MODBUS TCP communication protocol. TCP is a transport layer based protocol that is widely used and reliable for connections. Users can directly set module IP addresses, subnet masks, etc. on the webpage.
