1 differential grating ruler magnetic grating ruler encoder 4 times frequency pulse counter, Modbus RTU module WJ159

Product features:

Conversion of differential grating ruler magnetic grating ruler to standard Modbus RTU protocol

Can be used for measuring range angle or speed

Adopting 4-fold frequency counting, able to identify forward and reverse directions

The measured values support automatic saving after power outage

Can be set to automatically convert the actual value with pulse magnification

The module can output a 5V power supply to power the grating ruler

When there is interference in the pulse input, the filtering time can be set

 Zeroing and setting measurement values can be achieved through the RS-485 interface

Wide power supply range: 8~32VDC

High reliability, easy programming, and easy application

Standard DIN35 rail installation for convenient centralized wiring

User can programmatically set module address, Baud, etc

Typical applications:

Differential grating ruler pulse signal measurement

Differential magnetic grating ruler pulse signal measurement

Three coordinate system position measurement

Ball grating ruler pulse signal measurement

Remote transmission of grating ruler signal to industrial computer

Encoder signal is transmitted remotely to the industrial computer

Encoder pulse signal measurement

Intelligent factory and Industrial internet of things

Product Overview:

The WJ159 product achieves signal acquisition between sensors and the host, used to decode grating and magnetic grating signals. The WJ159 series products can be applied in RS-485 bus industrial automation control systems, automated machine tools, industrial robots, three coordinate positioning systems, displacement measurement, stroke measurement, angle measurement, rotational speed measurement, product meter measurement, and so on.

The products include signal acquisition, pulse signal capture, signal conversion, and RS-485 serial communication. Each serial port can connect 255 WJ159 series modules at most. The communication mode adopts ASCII code communication protocol or MODBUS RTU communication protocol. The Baud can be set by code and can be hung on the same RS-485 bus with the control modules of other manufacturers, which is convenient for computer programming The WJ159 series products are intelligent monitoring and control systems based on microcontrollers. All user set configuration information such as address, baud rate, data format, checksum status, etc. are stored in non-volatilememory EEPROM. The WJ159 series products are designed and manufactured according to industrial standards, with no isolationbetween signal inputs/outputs, strong anti-interference ability, and high reliability. The working temperature rangeis-45 ℃ to+85 ℃.

Function Introduction:

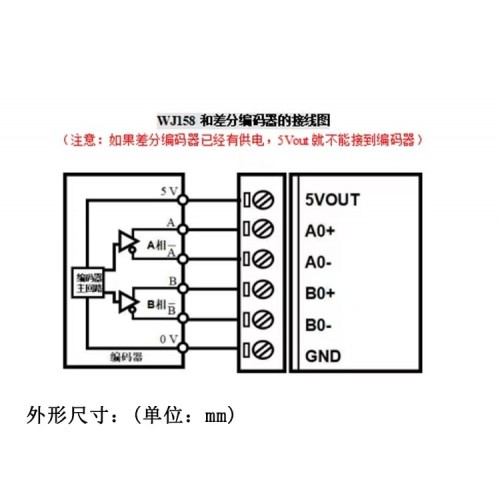

The WJ159 remote I/O module can be used to measure 1 channel of 5V differential grating encoder signal. 1、 Signal input 1-channel 5V differential grating ruler magnetic grating ruler encoder signal input. 2、 Communication Protocol Communication interface: 1 standard RS-485 communication interface. Communication Protocol: Supports two protocols, the character protocol defined by the command set andtheMODBUS RTU communication protocol. The module automatically recognizes communicationprotocols and can achieve network communication with various brands of PLCs, RTUs, or computermonitoring systems. Data format: 10 digits. 1 start bit, 8 data bits, and 1 stop bit. No verification. The communication address (0-255) and baud rate (2400, 4800, 9600, 19200, 38400, 57600, 115200bps) canbeset;The communication network can reach a maximum distance of 1200 meters and is connectedthroughtwisted pair shielded cables. High anti-interference design of communication interface, ± 15KV ESD protection, communication responsetimeless than 100mS. 3、 anti-interference Checksums can be set as needed. There is a transient suppression diode inside the module, which caneffectivelysuppress various surge pulses, protect the module, and the internal digital filter can also effectively suppresspowerfrequency interference from the power grid.

Product selection: WJ159 - □ Communication interface 485: Output as RS-485 interface Selection example: Model: WJ159-485 indicates an RS-485 interface for output

WJ159 General Parameters:

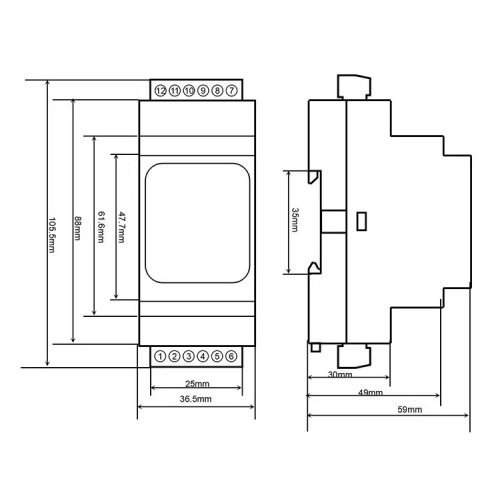

(Typical @+25 ℃, Vs is 24VDC) Input type: 5V differential signal input. Differential signal range ± 200mV~± 7V. The frequency range is 0-50KHz. Encoder count range -2147483647 ~+2147483647 Input resistance: 30K Ω Communication: RS-485 standard character protocol and MODBUS RTU communication protocol Baud rates (2400, 4800, 9600, 19200, 38400, 57600, 115200bps) can be selected by software The address (0-255) can be selected by software Communication response time: 100 ms maximum Working power supply:+8~32VDC wide power supply range, with internal anti reverse and overvoltage protectioncircuits Power consumption: less than 1W Working temperature: -45~+80 ℃ Working humidity: 10~90% (no condensation) Storage temperature: -45~+80 ℃ Storage humidity: 10~95% (no condensation) Dimensions: 106 mm x 59mm x 37mm
