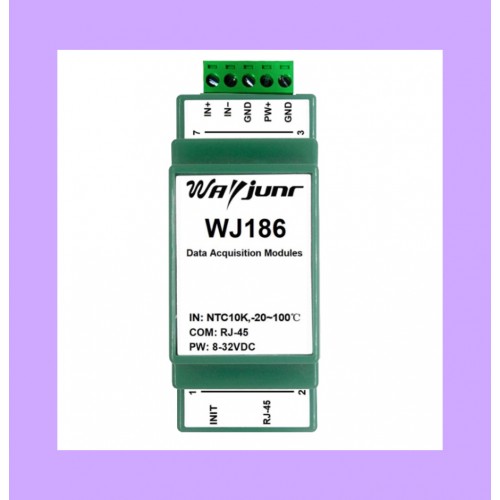

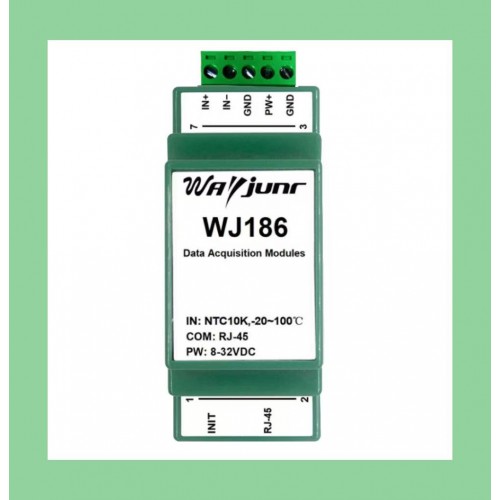

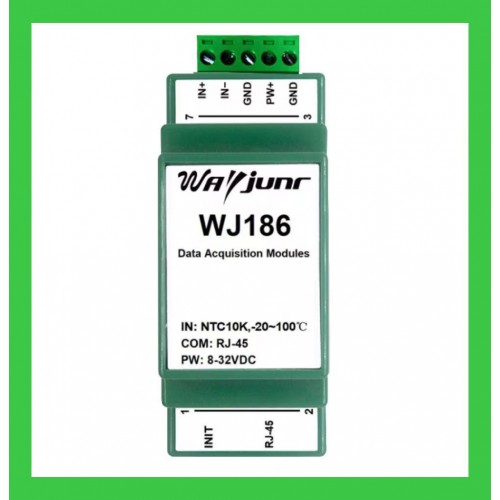

NTC thermistor temperature to network Modbus TCP and MQTTdataacquisitionmodule WJ186

Product features:

●Convert resistors such as NTC10K/NTC20K to standard Modbus TCP protocol

● Supports communication protocols such as TCP Server, UDP, MQTT, etc

● Built in web page function, data can be queried through web pages

●Wide power supply range: 8~32VDC

●High reliability, easy programming, and easy application

●Standard DIN35 rail installation, convenient for centralized wiring

●Users can set module IP addresses and other parameters on the webpage

●Low cost, small size, modular design

● Dimensions: 106 mm x 59mm x 37mm

Typical applications:

● Signal measurement, monitoring, and MQTT reporting

●TCP network, data collection

●Intelligent building control, security engineering and other application systems

● Industrial automation control system

●Industrial site signal isolation and long-distance transmission

●Equipment operation monitoring, MES system

●Measurement of sensor signals

● Acquisition and recording of industrial field data

●Development of medical and industrial control products

●Measurement of temperature signals such as NTC10K/NTC20K

Product Overview:

The WJ186 product is an IoT and industrial Ethernet acquisition module that enables transparent data exchangebetween sensors and networks. The analog data from sensors can be forwarded to the network.The WJ186 series products include power conditioning, NTC10K/NTC20K resistance signal acquisition, andRJ-45network interface communication. The communication method adopts MODBUS TCP protocol. TCPis atransportlayer based protocol that is widely used and a reliable connection oriented protocol. Users can directly set moduleIPaddresses, subnet masks, etc. on the webpage. Can be used for monitoring and controlling the operationof sensordevicesThe WJ186 series products are intelligent monitoring and control systems based on microcontrollers, whereusersetmodule IP addresses, subnet masks, and other configuration information are stored in non-volatile memory EEPROM. The WJ186 series products are designed and manufactured according to industrial standards, withstronganti-interference ability and high reliability. The working temperature range is -45 ℃to+80 ℃.Function Introduction: The WJ186 remote I/O module can be used to measure 1 channel of temperature signals such as NTC10K/NTC20K. 1. Temperature signal input 12 bit acquisition accuracy, 1 NTC temperature signal input. All signal input ranges have been calibratedbeforethe product leaves the factory. During use, users can also easily program and calibrate themselves. 2. Communication Protocol Communication interface: RJ-45 network interface. The two indicator lights at the network port position, theLinklight(green light) stays on and the Data light (yellow light) stays on after the network cable is plugged in. Communication protocol: MODBUS TCP protocol is adopted to achieve industrial Ethernet data exchange. It canalso communicate with modules through TCP sockets. Network cache: 2K bytes (for both sending and receiving) Communication response time: less than 10mS. 3. Anti interference There is a transient suppression diode inside the module, which can effectively suppress various surge pulsesandprotect the module

Product model: WJ186 - NTC□ - T□ - RJ45 Input type: NTC □ Temperature range: T □ Communicationinterface:RJ45code explain code explain code explainNTC1K NTC1K type thermistor T1 -20-100℃ RJ45 Output as RJ-45networkinterfaceNTC5K NTC5K type thermistor T2 0-100℃ NTC10K NTC10K type thermistor T3 0-150℃ NTC20K NTC20K type thermistor T4 0-200℃ NTC50K NTC50K type thermistor T5 0-400℃ NTC100K NTC100K type thermistor Tu User defined

Selection Example 1: Model: WJ186-NTC10K-T1-RJ45 represents one NTC10K, -20~100 ℃signal input, andtheoutput is an RJ-45 network interface Selection Example 2: Model: WJ186-NTTC100K-T2-RJ45 represents 1 channel NTC100K, 0~100 ℃signal input,and output as RJ-45 network interface

WJ186 General Parameters:

(Typical @+25 ℃, Vs is 24VDC) Input type: NTC resistor input Accuracy: 0.1% Temperature drift: ± 50 ppm/℃ (± 100 ppm/℃, maximum)

Bandwidth: -3 dB 10 Hz Conversion rate: 4Sps (factory default value, users can modify the conversion rate on the webpage.) You can set the AD conversion rate to 2SPS, 4SPS, 8SPS, 16SPS, 32SPS, 50SPS, 80SPS, 100SPSbysendingcommands Common mode rejection (CMR): 120 dB (1k Ω Source Imbalance @ 50/60 Hz) Normal mode suppression (NMR): 60 dB (1k Ω Source Imbalance @ 50/60 Hz) Input protection: overvoltage protection, overcurrent protection Communication: MODBUS TCP communication protocol or TCP socket character protocol or MQTT protocol Web page: Supports web access module and web page setting module parameters. Interface: RJ-45 network interface. Communication response time: 100 ms maximum Working power supply:+8~32VDC wide power supply range, with internal anti reverse and overvoltage protectioncircuits Power consumption: less than 3W Working temperature: -45~+80 ℃ Working humidity: 10~90% (no condensation) Storage temperature: -45~+80 ℃ Storage humidity: 10~95% (no condensation) Dimensions: 106 mm x 59mm x 37mm
